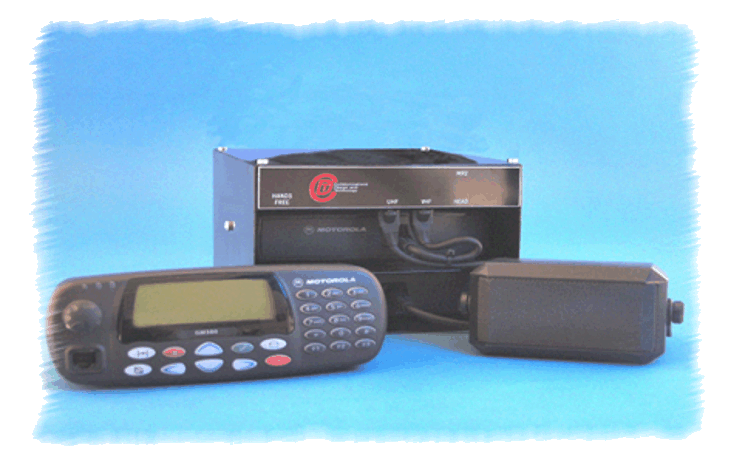

MR2 In-Vehicle Repeater

Standard features

Choice of UHF to UHF or UHF to VHF
A combination of UHF to UHF repeat, cross-band UHF to VHF or a combination
. Motorola proven Hardware
The Professional Series of GM300 radios are used, up to 25 watts output (45 watts non CE Version)
Single control head
One head controls all and saves on valuable dash space, choice of control head complexity
. Set up and Knock Down by local or remote control
Control of repeat function via the control head or from the control room, 'over air'
. Fully approved to ETSI and CE standards
Meets all European approvals for 25 watt versions
. All current signalling formats available
EEA, CCIR, ZVEI and customer defined

Standard features

. Capable of being tailored to customers requirements

CDT can meet customers specific facilities to enable a fully customised solution

. Transportable or mobile versions to customer requirements

A fully portable system including power supplies and rechargeable batteries for remote operation

. Single or multiple antenna configurations

A combination of Duplexers and Combiners are available to meet your requirements

MR2 In-Vehicle Repeater specification

General
Specification	VHF	UHF
Frequency Range	136-174 MHz	403-470 MHz
Frequency Stability	+ 2.5 PPM	+2 PPM
Channel Spacing	12.5/20/25 KHz
Power Output	1-25 Watts	1-25 Watts
Power Supply	13.2 Vdc (10.8 - 15.6 Vdc) negative ground
Dimensions	215mm W x 135mm H x 200mm D or housing can be customer defined
Weight	4.0 Kilo Including Radios
Operating Temperature	-30 to 60oC
Shock and Vibration	Meets MIL-STD810C,D&E and TIA/EIA 603
Dust	Meets MIL-STD810C,D&E and TIA/EIA 603
Hummidity	Meets MIL-STD810C,D&E and TIA/EIA 603
